The abstract base class the user should inherit from. More...

#include <callback.hpp>

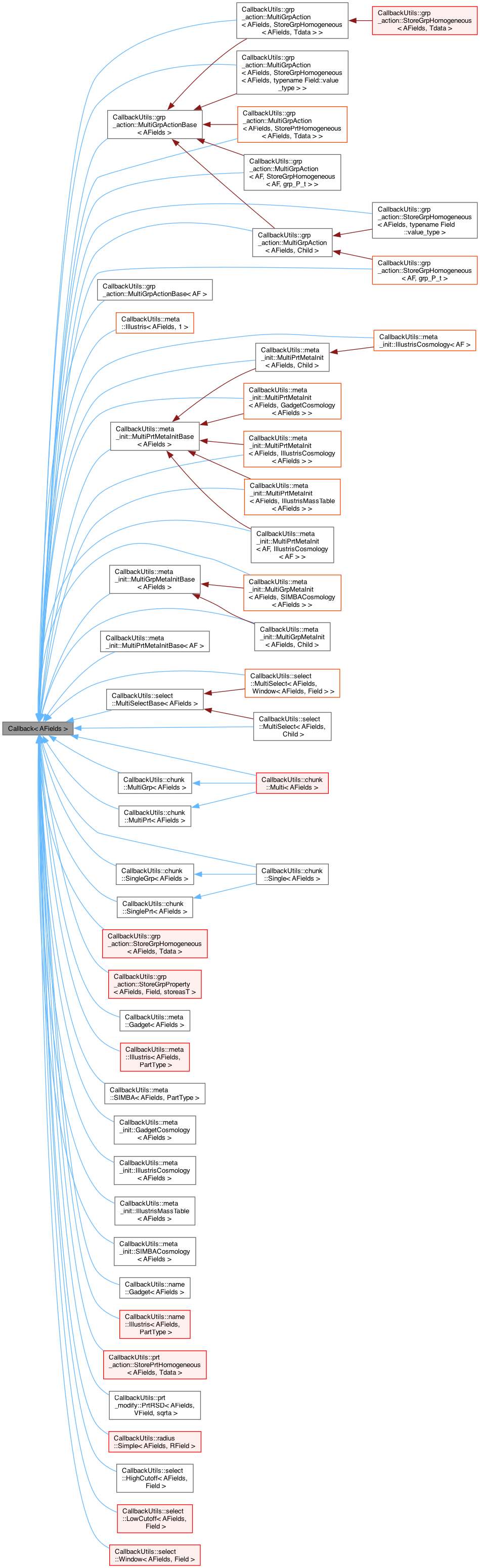

Inheritance diagram for Callback< AFields >:

[legend]

Classes
class	BaseProperties
	Type describing either a group or a particle. More...

class	GrpProperties
	Specialization of the Callback::BaseProperties type to groups. More...

struct	PrtProperties
	Specialization of the Callback::BaseProperties type to particles. More...

Public Member Functions
virtual bool	grp_chunk (size_t chunk_idx, std::string &fname) const =0
	Where to find the group files.

virtual bool	prt_chunk (size_t chunk_idx, std::string &fname) const =0
	Where to find the particle files.

virtual std::string	grp_name () const =0
	Where to find the group fields in the hdf5 file.

virtual std::string	prt_name () const =0
	Where to find the particle fields in the hdf5 file.

virtual void	read_grp_meta_init (std::shared_ptr< H5::H5File > fptr)
	Allows the user to read meta-data from the 0th group chunk.

virtual void	read_prt_meta_init (std::shared_ptr< H5::H5File > fptr)
	Allows the user to read meta-data from the 0th particle chunk.

virtual void	read_grp_meta (size_t chunk_idx, std::shared_ptr< H5::H5File > fptr, size_t &Ngroups) const =0
	Inform the code how many groups there are in a group chunk.

virtual void	read_prt_meta (size_t chunk_idx, std::shared_ptr< H5::H5File > fptr, coord_t &Bsize, size_t &Nparts) const =0
	Inform the code how large the box is and how many particles there are in a particle chunk.

virtual bool	grp_select (const GrpProperties &grp) const
	Inform the code whether a group should be considered.

virtual void	grp_action (const GrpProperties &grp)=0
	Action to take for each group for which grp_select returned true.

virtual coord_t	grp_radius (const GrpProperties &grp) const =0
	Inform the code how large this group is.

virtual void	prt_action (size_t grp_idx, const GrpProperties &grp, const PrtProperties &prt, coord_t Rsq)=0
	Action to take for each particle that falls within grp_radius from a group.

virtual coord_t	prt_coord_rescale () const
	Rescaling of particle coordinates.

virtual void	prt_modify (PrtProperties &prt)
	Modifications to particle properties.

Detailed Description

template<typename AFields>
struct Callback< AFields >

The abstract base class the user should inherit from.

Template Parameters

AFields a type constructed from the AllFields template.

By overriding this classes methods, the user defines the functionality of the code.

See the documentation for group_particles for the order in which the non-const methods are called.

Member Function Documentation

◆ grp_chunk()

template<typename AFields >

virtual bool Callback< AFields >::grp_chunk	(	size_t	chunk_idx,
		std::string &	fname
	)		const

pure virtual

Where to find the group files.

Parameters

[in]	chunk_idx	index of the group chunk the code wants to read (starting from 0).
[out]	fname	file name corresponding to this index.

Returns: true if there is a chunk corresponding to chunk_idx, false otherwise. By definition, must return true for chunk_idx=0.

Note: see CallbackUtils::chunk for some overrides.

◆ prt_chunk()

template<typename AFields >

virtual bool Callback< AFields >::prt_chunk	(	size_t	chunk_idx,
		std::string &	fname
	)		const

pure virtual

Where to find the particle files.

Parameters

[in]	chunk_idx	index of the particle chunk the code wants to read (starting from 0).
[out]	fname	file name corresponding to this index.

Returns: true if there is a chunk corresponding to chunk_idx, false otherwise. By definition, must return true for chunk_idx=0.

Note: see CallbackUtils::chunk for some overrides.

◆ grp_name()

template<typename AFields >

virtual std::string Callback< AFields >::grp_name ( ) const

pure virtual

Where to find the group fields in the hdf5 file.

Remarks: for Illustris-type formats, "Group/"

Note: see CallbackUtils::name for some overrides.

◆ prt_name()

template<typename AFields >

virtual std::string Callback< AFields >::prt_name ( ) const

pure virtual

Where to find the particle fields in the hdf5 file.

Remarks: for Illustris-type formats, "PartType.../"

Note: see CallbackUtils::name for some overrides.

◆ read_grp_meta_init()

template<typename AFields >

virtual void Callback< AFields >::read_grp_meta_init ( std::shared_ptr< H5::H5File > fptr )

inlinevirtual

Allows the user to read meta-data from the 0th group chunk.

Parameters

[in] fptr Points to the opened 0th group chunk.

Remarks: This function is trivially implemented, so does not need to be overriden.

Note: see CallbackUtils::meta_init for some overrides.

◆ read_prt_meta_init()

template<typename AFields >

virtual void Callback< AFields >::read_prt_meta_init ( std::shared_ptr< H5::H5File > fptr )

inlinevirtual

Allows the user to read meta-data from the 0th particle chunk.

Parameters

[in] fptr Points to the opened 0th particle chunk.

Remarks: This function is trivially implemented, so does not need to be overriden.

Note: see CallbackUtils::meta_init for some overrides.

◆ read_grp_meta()

template<typename AFields >

virtual void Callback< AFields >::read_grp_meta	(	size_t	chunk_idx,
		std::shared_ptr< H5::H5File >	fptr,
		size_t &	Ngroups
	)		const

pure virtual

Inform the code how many groups there are in a group chunk.

Parameters

[in]	chunk_idx	index of the group chunk, starting from 0.
[in]	fptr	pointer to the opened group chunk file.
[out]	Ngroups	to be filled with the number of groups in this file.

Remarks: In principle, the code could infer Ngroups from the size of the data arrays stored in the file, but it is safer to have this additional check.

Note: see CallbackUtils::meta for some overrides.

◆ read_prt_meta()

template<typename AFields >

virtual void Callback< AFields >::read_prt_meta	(	size_t	chunk_idx,
		std::shared_ptr< H5::H5File >	fptr,
		coord_t &	Bsize,
		size_t &	Nparts
	)		const

pure virtual

Inform the code how large the box is and how many particles there are in a particle chunk.

Parameters

[in]	chunk_idx	index of the particle chunk, starting from 0.
[in]	fptr	pointer to the opened particle chunk file.
[out]	Bsize	to be filled with the size of the simulation box. This should always be the same; the code checks this assumption as an additional safety feature. Units are the same as the ones used in the data arrays.
[out]	Nparts	to be filled with the number of particles in this file.

Remarks: In principle, the code could infer Nparts from the size of the data arrays stored in the file, but it is safer to have this additional check.

Note: see CallbackUtils::meta for some overrides.

◆ grp_select()

template<typename AFields >

virtual bool Callback< AFields >::grp_select ( const GrpProperties & grp ) const

inlinevirtual

Inform the code whether a group should be considered.

Parameters

[in] grp properties of this group.

Returns: whether this group should be considered.

Remarks: This function is trivially implemented, so does not need to be overriden.

Note: see CallbackUtils::select for some overrides.

◆ grp_action()

template<typename AFields >

virtual void Callback< AFields >::grp_action ( const GrpProperties & grp )

pure virtual

Action to take for each group for which grp_select returned true.

Parameters

[in] grp properties of this group.

Remarks: This function will be called in the order of groups encountered, corresponding to the grp_idx argument in the prt_action method.

Warning: There can be a cross-reaction with certain overrides of the prt_action method. In that case, overriding this method directly will lead to a compiler error. It is advised that the user always uses inheritance from the CallbackUtils::grp_action::MultiGrpAction interface to indirectly override this method.

Note: see CallbackUtils::grp_action for some overrides.

◆ grp_radius()

template<typename AFields >

virtual coord_t Callback< AFields >::grp_radius ( const GrpProperties & grp ) const

pure virtual

Inform the code how large this group is.

Parameters

[in] grp properties of this group.

Returns: the radius of this group. Only particles falling within this distance from the group coordinate will be passed to the prt_action method.

Note: see CallbackUtils::radius for some overrides.

◆ prt_action()

template<typename AFields >

virtual void Callback< AFields >::prt_action	(	size_t	grp_idx,
		const GrpProperties &	grp,
		const PrtProperties &	prt,
		coord_t	Rsq
	)

pure virtual

Action to take for each particle that falls within grp_radius from a group.

Parameters

[in]	grp_idx	index of this group, corresponding to the order in which grp_action was called.
[in]	grp	properties of this group. Well-designed code should not need to use this argument, as the required data products can be reduced more efficiently in the grp_action method.
[in]	prt	properties of this particle.
[in]	Rsq	squared distance between this particle's coordinate and this group's coordinate. The code already computes this so the user should be able to use it without re-computing it.

Note: see CallbackUtils::prt_action for some overrides.

◆ prt_coord_rescale()

template<typename AFields >

virtual coord_t Callback< AFields >::prt_coord_rescale ( ) const

inlinevirtual

Rescaling of particle coordinates.

Returns: the factor by which the particle coordinates will be rescaled

Note: this is also applied to the box size.; only applied to the zeroth particle field (the primary coordinate), regardless of whether there are other coordinate-like fields; primary purpose is to resolve units mismatch between particle and group catalogs.

◆ prt_modify()

template<typename AFields >

virtual void Callback< AFields >::prt_modify ( PrtProperties & prt )

inlinevirtual

Modifications to particle properties.

Parameters

[in,out] prt properties of the particle, to be modified

Note: this is called after coordinate rescaling has been applied; original motivation is to implement RSD

The documentation for this struct was generated from the following file:

callback.hpp
